Z Base Roll cage

Z Base roll cage is an optimal solution to enhance the distribution process and ensure storage simplicity.

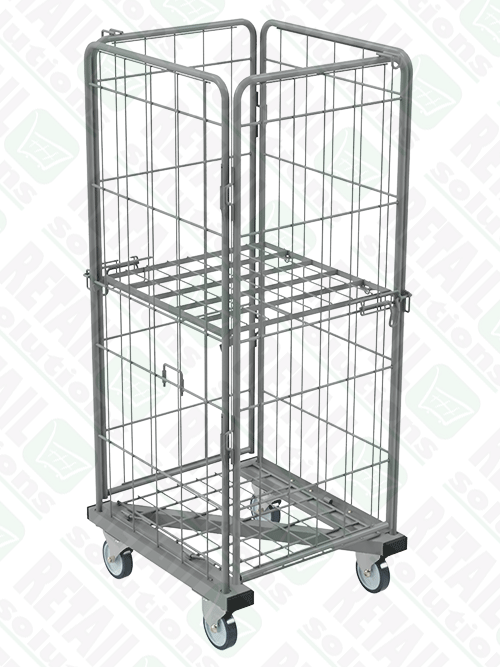

Z Base roll cage is a 4-sided mesh structure cage with two-way door provision which is designed and developed to offer a solution for reducing the manual handling and simplifying the distribution process of goods.

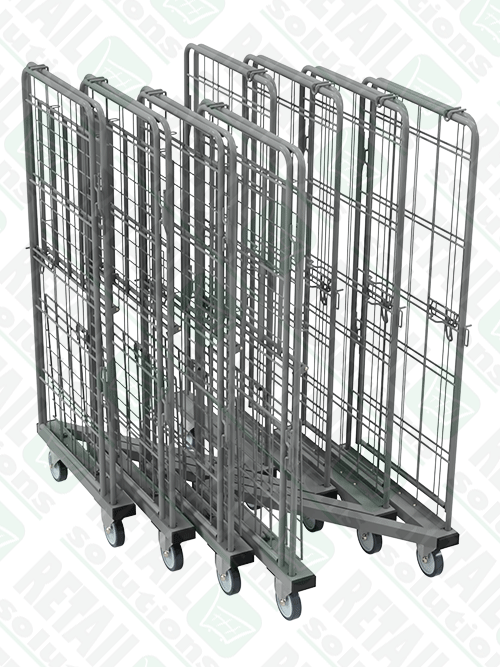

Z Base roll cage possess the collapsible property due to which it can be folded and nested into a similar cage as a result limited area is required for Z Base roll cage storage.

Z Base Roll Cage is also available in 2-sided mesh structure cage.

Technical Specification

External Dimension are : L-832mm W-760mm H-1920mm
Load Capacity of this product is 300kg.
Available in Two different Concepts
1. Z-BASE ROLL CAGE With Front Door.
2. Z-BASE ROLL CAGE Without Front Door Locked using Belt.
Wheel used in our Roll cage is a High quality Polyurethane caster wheels with wheel Dia of 150mm.
Roll cage is Powder Coated with Epoxy Metallic silver Grey to protect against oxidation.

Product Features

Easy access: An opening from the front side as well as from the back side from lateral to lateral allows total access to the products
Both Concept is equipped with a Middle Shelf for separation of product on same Roll cage.
Roll Cage has a Nestable property when it is in a empty state, Due to which Roll cage consume less space at idle condition Hence Minimizing the Storage Area
